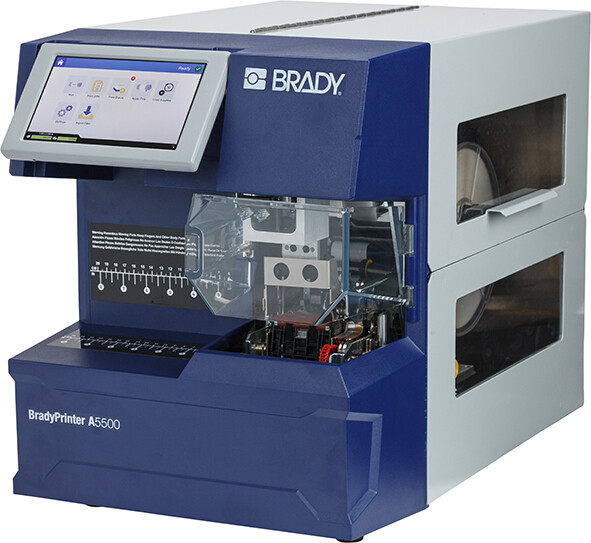

BradyPrinter A5500

Precise cable marking within 5 seconds

With the flag-print applicator A5500 from Brady you combine two work steps in one: precise printing with a resolution of up to 200 dpi and fast apply.

The cables can have diameter from 1,52 up to 15,24 mm. The labels can have a width from 25,40 up to 50,8 mm and a length from 19,05 up to 101,60 mm. The printing speed is up to 76,20 (mm/sec.).

Thanks to a modern user interface with a colour-touchscreen and the simple system integration the Brady A5500 is very user-friendly and easy to handle in dialy applications.

See for yourself and get to know the huge efficiency enhancement in your industrial processes!

Applications Cable marking
Weight (kg) 34
Measuers (mm) Width: 107 x Depth: 106 x Length: 328
Memory 32 GB
Display Colour-Touchscreen
Colour print one-coloured
Resolution (dpi) 300
Printing speed (mm/sec) 76,20
Min. Label width (mm) 25,40
Max. Label width (mm) 50,80
Max. Print width (mm) 50,80
Max. Print length (mm) 101,60
Min. Cable diameter (mm) 1,524
Max. Cable diameter (mm) 15,24
Connection options Ethernet, USB, WiFi
